Product Details
Place of Origin: Jiangsu, China
Brand Name: Gaoqiao, Gaoqiao
Model Number: MPS-1
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Packaging Details: Carton Box Packing for each module, cartons loaded in a wooden box with pallet.
Supply Ability: 200 Piece/Pieces per Month
Place Of Origin: |
Jiangsu, China |
Brand Name: |
Gaoqiao, Gaoqiao |
Model Number: |
MPS-1 |
Power Supply: |
AC 85V~265V, 50/60Hz |
Switch: |
Pushbutton |
Light Controller: |
32 Bit, Independent |
Traffic Light Diameter: |
200mm, 300mm |
Traffic Countdown: |
Equipped |
Place Of Origin: |
Jiangsu, China |
Brand Name: |
Gaoqiao, Gaoqiao |
Model Number: |
MPS-1 |
Power Supply: |
AC 85V~265V, 50/60Hz |
Switch: |
Pushbutton |
Light Controller: |
32 Bit, Independent |
Traffic Light Diameter: |
200mm, 300mm |
Traffic Countdown: |
Equipped |

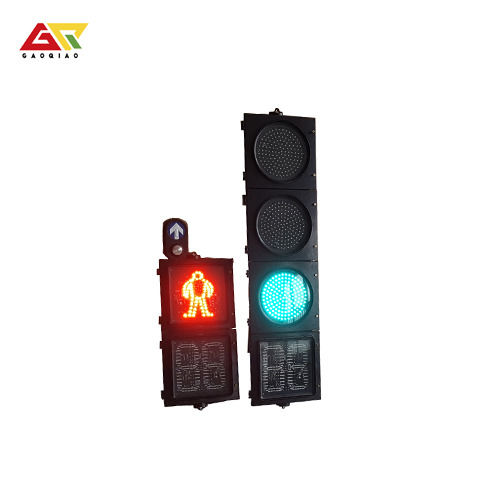

Traffic Signal Manual Control System for Pedestrian
Traffic lights
1. Pedestrian Light (customizing available)
voltage: AC85~265V, 50/60Hz
LED number: red 48 pcs, green 88 pcs
Light diameter: 200mm
Lights intensity: >200cd
Ingress protect: IP65
countdown timer: communicating type
2. Vehicle Light (customizing available)
voltage: AC85~265V, 50/60Hz
Light diameter: 300mm
LED number: 147 pcs (each color)
Lights intensity: >400cd
Ingress protect: IP65
countdown timer: communicating type
3. Pedestrian Switch
1) Housing: die-casting aluminum
2) Button: stainless steel
3) Trigger: Magnetic induction
4) Ingress protect: IP65
4. System controller
1) Capacity : 22 circuits 4 phases
2) Operating Power : AC85~265V, 50/60Hz
50Hz ± 3Hz ;
3) Microprocessor: 32 bit, 72MHz
4) RAM: 48K
5) Data Memory: 512K
6) Size: 500×180×350 mm
